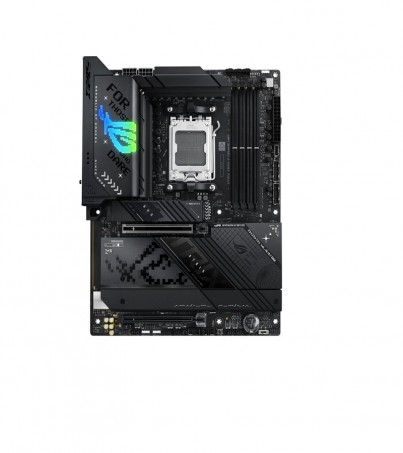

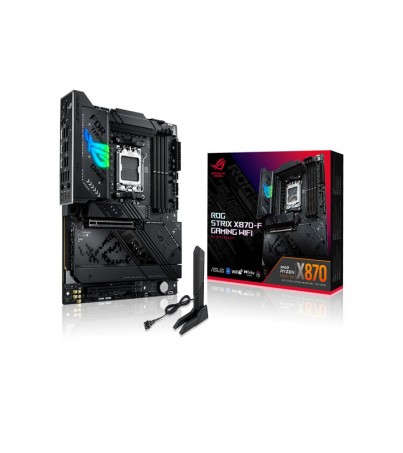

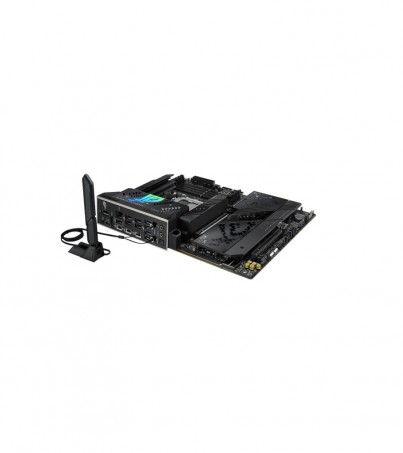

MAINBOARD (เมนบอร์ด) ASUS ROG STRIX X870-F GAMING WIFI - AMD SOCKET AM5 DDR5 ATX

Asus

ROG STRIX X870-F GAMING WIFI

AM5 (7000 Series - Raphael) , AM5 (8000 / 8000 G Series - Phoenix) , AM5 (9000 Series - Granite Ridge)

170W

AMD X870

Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9

4

DDR5

192 GB

4800 , 5200 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC)

Requires a CPU with Integrated Graphics.
—
• 1 x DisplayPort**
• 1 x HDMI port***
• 2 x USB4 (40Gbps) ports support USB Type-C display outputs****
—
* Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors' or graphic cards' resolution.

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

Audio Features
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel

- Port

2 Port

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.

4 x M.2 slots
—
AMD Ryzen 9000 & 7000 Series Desktop Processors*
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors**
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)****
—
AMD X870 Chipset
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
• M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
—
** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
*** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled.
**** M.2_2 will be disabled when using AMD Ryzen 8000 Series Desktop Processors. Port

AMD Ryzen 9000 & 7000 Series Desktop Processors*
• 1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
—
AMD X870 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
—
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

1 x PCIe 4.0 x16 Slot , 1 x PCIe 5.0 x16 Slot

Intel 2.5Gb Ethernet

100/1000/2500 Mbps

Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
- Bluetooth v5.4***
—
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

- Port

- Port

- Port

- Port

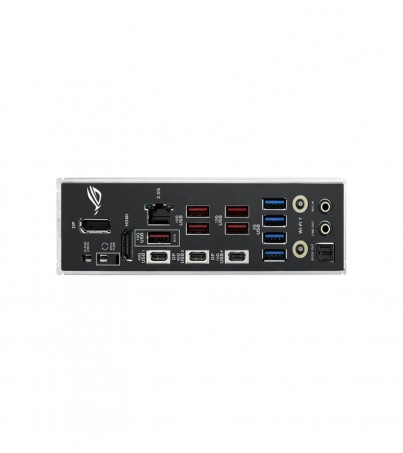

2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)
4 x USB 5Gbps ports (4 x Type-A) Port

- Port

- Port

1 Port

1 Port

2 x Audio jacks
1 x Optical S/PDIF out Port

1 x Wi-Fi module
1 x BIOS FlashBack button
1 x Clear CMOS button

1 Port

ATX

24 + 8 + 8 Pin

30.5 x 24.4 cm

3 Years
