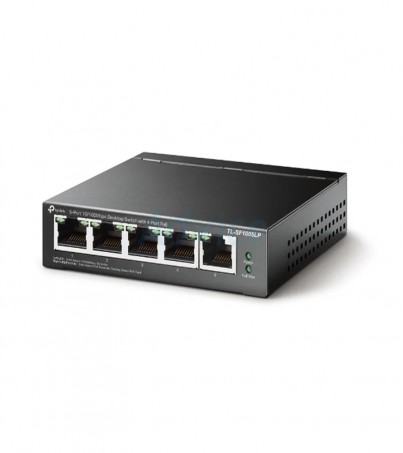

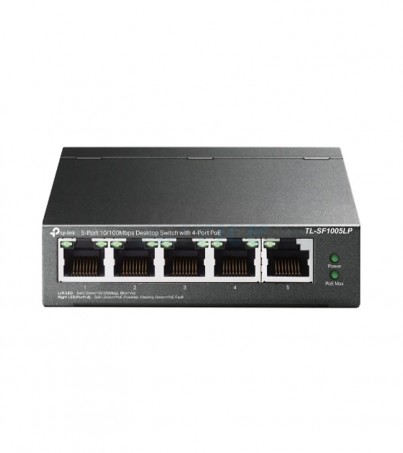

Switching Hub 5 Port TP-LINK TL-SF1005LP (4'',4 POE)(By SuperTStore)

20%
1,100.00
฿ 890.00

ได้รับภายใน : 21 เม.ย. ~ 23 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : การรับประกันอายุการใช้งาน

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป
คำอธิบายสินค้า
รายละเอียดสินค้า
คะแนนและรีวิว
Q & A
คุณสมบัติทั่วไป
สิ่งที่ให้มาในกล่อง Switching Hub 5 Port TP-LINK TL-SF1005LP (4'',4 POE) MODEL Switching Hub 5 Port TP-LINK TL-SF1005LP (4'',4 POE)
การรับประกัน Warranty Available ระยะเวลาการรับประกัน Lifetime
คำอธิบายสินค้า

Switching Hub 5 Port TP-LINK TL-SF1005LP (4'',4 POE)

  • 5× 10/100 Mbps RJ45 ports
  • 4× PoE ports transfer data and power on individual cables
  • Works with IEEE 802.3af compliant PDs
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 41 W for all PoE ports*
  • Plug and play with no configuration required
รายละเอียดสินค้า

รายละเอียดสินค้า Switching Hub 5 Port TP-LINK TL-SF1005LP (4'',4 POE)

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250m





Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.





Ideal for IP Surveillance - Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**-perfect for IP Camera deployment in large areas.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.




Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.





Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.





Plug and Play, No Configuration Required





อ้างอิงจาก : www.tp-link.com

คุณสมบัติ Switching Hub 5 Port TP-LINK TL-SF1005LP (4'',4 POE)

BrandTP-LINK
Model

TL-SF1005LP

Network Interface

5 × 10/100 Mbps RJ45 Ports (Ports 1-4 support 802.3af PoE)

Switching Capacity

1 Gbps

Transmission Method

Store-And-Forward

MAC Address Table

2K

Forwarding Rate

0.744 Mpps

Jumbo Frame

2 KB

Fan Quantity

Fanless

Network Media

10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX : UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Material

Metal

PoE

Standard : 802.3 af compliant
PoE Ports : Ports 1-4
Power Supply : 41 W

Power Supply

External Power Adapter (Output: 53.5 VDC / 0.81 A)

Power Consumption

1.9W (220V / 50Hz, no PD connected)
47W (220V / 50Hz, with 41 W PD connected)

Environment

Operating Temperature : 0-40°C (32-104°F)
Storage Temperature : -40-70°C (-40-158°F)
Operating Humidity : 10-90% RH non-condensing
Storage Humidity : 5-90% RH non-condensing

Certifications

FCC, CE, RoHS

Package Contents

TL-SF1005LP
Power Adapter
Installation Guide

Dimension(W x D x H) : 10.00 x 9.80 x 2.50 cm
Net Weight0.00 KG
Package Dimension(W x D x H) : 19.70 x 12.00 x 12.70 cm
Gross Weight0.72 KG
Volume3,002.28 cm3
