MAINBOARD (1700) GIGABYTE B760M AORUS PRO AX(By SuperTStore)

12%
7,990.00
฿ 7,090.00

ฟรี

ได้รับภายใน : 04 ธ.ค. ~ 06 ธ.ค., 2023

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 3 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป
คำอธิบายสินค้า
รายละเอียดสินค้า
คะแนนและรีวิว
Q & A
คุณสมบัติทั่วไป
สิ่งที่ให้มาในกล่อง MAINBOARD (1700) GIGABYTE B760M AORUS PRO AX MODEL MAINBOARD (1700) GIGABYTE B760M AORUS PRO AX
Chipset Intel® B760 Express Chipset Form Factor 1700
Mainboard Brand GIGABYTE การรับประกัน Warranty Available
ระยะเวลาการรับประกัน 3 years
คำอธิบายสินค้า

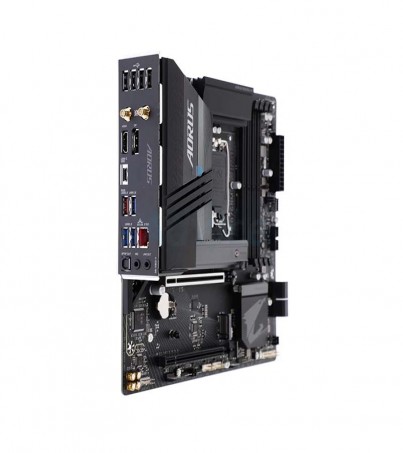

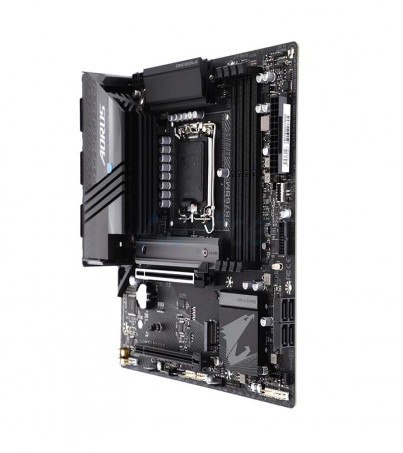

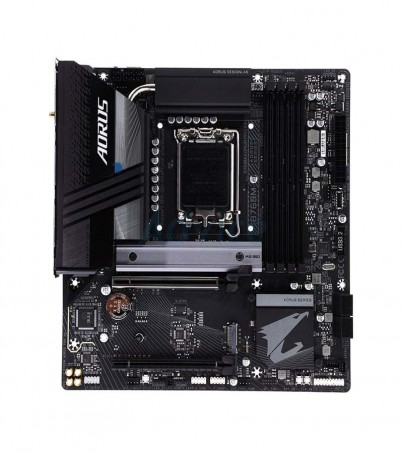

MAINBOARD (1700) GIGABYTE B760M AORUS PRO AX

Socket : 1700
Chipset : Intel B760
Ram : 4 x DDR5 5600/ 5400/ 5200/ 5000/ 4800 MHz Max.128GB
Form Factor : Micro ATX

รายละเอียดสินค้า

คุณสมบัติ MAINBOARD (1700) GIGABYTE B760M AORUS PRO AX

BrandGIGABYTE
Model

B760M AORUS PRO AX

CPU Support

LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

Socket

1700

Chipset

Intel® B760 Express Chipset

Memory Support
  1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Bus

7600

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
    * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Multi Graphic Support

N/A

Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
Maximum PCIe Version

Pcie 4.0

Storage

CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 4 x SATA 6Gb/s connectors

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset

M.2 Storage Type Support

PCI-E 4.0 NVMe

USB

Chipset:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 2 x USB 3.2 Gen 1 ports on the back panel
  5. 2 x USB 2.0/1.1 ports available through the internal USB header

Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors

Chipset:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 2 x USB 3.2 Gen 1 ports on the back panel
  5. 2 x USB 2.0/1.1 ports available through the internal USB header

Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports on the back panel

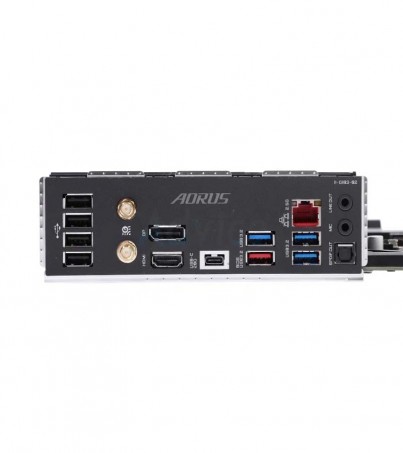

Back Panel Connectors
  1. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red)
  3. 3 x USB 3.2 Gen 1 ports
  4. 4 x USB 2.0/1.1 ports
  5. 2 x SMA antenna connectors (2T2R)
  6. 1 x HDMI 2.0 port
  7. 1 x DisplayPort
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 2 x audio jacks
LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Data Network

Intel® Wi-Fi 6E AX211

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

  4. * Actual data rate may vary depending on environment and equipment.
Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Software Features
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System Support
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Package Contents

N/A

Package Dimension(W x D x H) : 27.00 x 27.00 x 7.00 cm
Gross Weight1.50 KG
Volume5,103.00 cm3
