(AM4) GIGABYTE X470 GAMING5 WIFI

Name: (AM4) GIGABYTE X470 GAMING5 WIFI
Brand: Gigabyte
SKU: supt16905-
Price: 6935 THB
Availability: InStock

7,590.00

฿ 6,935.00

ฟรี

ได้รับภายใน : 26 เม.ย. ~ 28 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 3 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป

คำอธิบายสินค้า

รายละเอียดสินค้า

คะแนนและรีวิว

Q & A

คุณสมบัติทั่วไป

สิ่งที่ให้มาในกล่อง		MODEL
Chipset	AMD X470	Form Factor	ATX
Mainboard Brand	GIGABYTE	การรับประกัน	รับประกันโดยร้านผู้จัดจำหน่าย
ระยะเวลาการรับประกัน	3 years

คำอธิบายสินค้า

Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Gaphics/ Ryzen™ 1st Generation/ 7th Generation A-Series/ Athlon™ X4 Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
8+3 Phase Hybrid Digital PWM Design
2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durable™ Design
Intel® 802.11ac Wave2 2T2R WIFI & BT 5
ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
Dual Ultra-Fast M.2 with NVMe PCIe X4 with One Thermal Guard
RGB FUSION with Multi-zone LED Light Show Design, Supports Digital LED & RGB LED Strips
Intel® Ethernet LAN with cFOS Speed Internet Accelerator
USB DAC-UP 2 with Adjustable Voltage
Anti-Sulfur Resistors Design
Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
CEC 2019 Ready, Save Power with a Single Click

รายละเอียดสินค้า

Brand GIGABYTE
Model X470 AORUS GAMING 5 WIFI
CPU Support AMD Ryzen™ processor
AMD 7th Generation A-series/Athlon™ processors
Socket AM4
Memory Support 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Chipset AMD X470
Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz*
* Support for HDMI 2.0 version and HDCP 2.2.*
* Actual support may vary by CPU.
Maximum shared memory of 2 GB
Multi Graphic Support Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Audio Realtek® ALC1220 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)*
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)*
* Actual support may vary by CPU.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SOCKET connector.
2 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4* /x2 SSD support) (M2A_SOCKET)
* Actual bandwidth may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2B_SOCKET)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
USB ASMedia® USB 3.1 Gen 2 Controller:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
4 x USB 3.1 Gen 1 ports, available through the internal USB headers
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x CPU cooler LED strip/RGB LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x RGB (RGBW) LED strip header
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x temperature sensor header

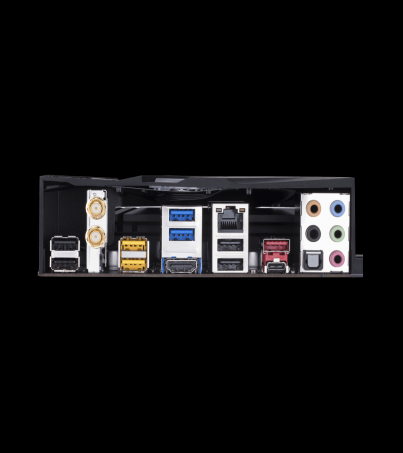

Back Panel Connectors 2 x MMCX antenna connectors (2T2R)
4 x USB 3.1 Gen 1 ports
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
LAN Intel® GbE LAN chip (10/100/1000 Mbit)
Wireless Data Network Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Form Factor ATX Form Factor; 30.5cm x 24.4cm
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the cooler (pump)you install.
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundle Software Norton® Internet Security (OEM version)
cFosSpeed
XSplit Gamecaster + Broadcaster (12 months license)
Operating System Support Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Summit Ridge or Bristol Ridge CPU.
