0.0 (0)

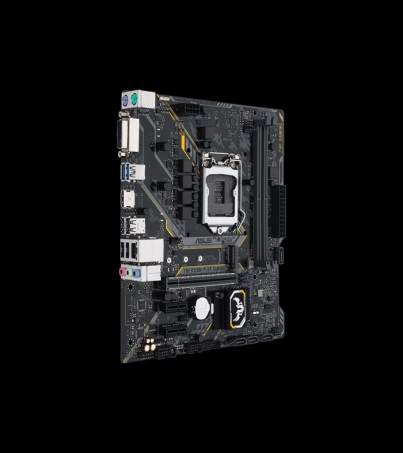

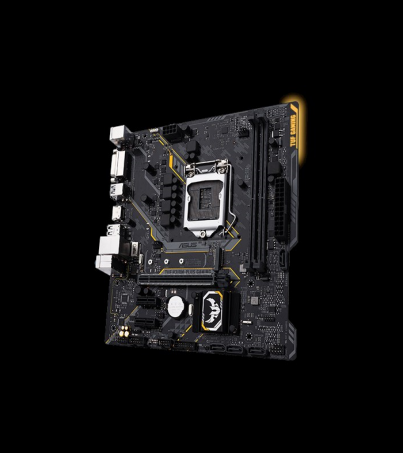

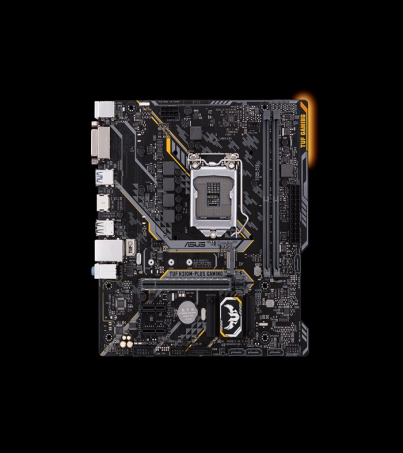

(1151V2) ASUS TUF H310M PLUS GAMING

6%
2,890.00
฿ 2,720.00

ฟรี

ได้รับภายใน : 30 มี.ค. ~ 01 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 3 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป
คำอธิบายสินค้า
รายละเอียดสินค้า
คะแนนและรีวิว
Q & A
คุณสมบัติทั่วไป

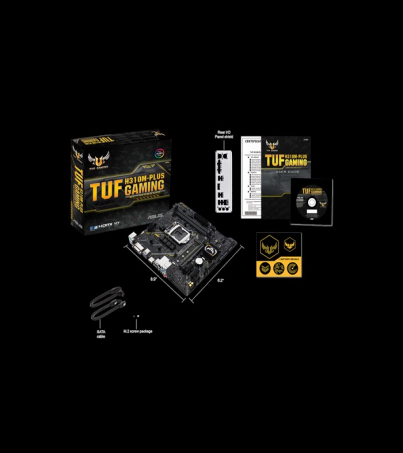

สิ่งที่ให้มาในกล่อง MODEL
Chipset Intel H310 Form Factor Micro-ATX
Mainboard Brand ASUS การรับประกัน รับประกันโดยร้านผู้จัดจำหน่าย
ระยะเวลาการรับประกัน 3 years
คำอธิบายสินค้า
  • by ASUS

  • GPU Temperature Sensing & Fan Xpert 4 Core : มั่นใจได้ว่าพัดลมที่ถูกติดตั้งจะทำงานได้อย่างเต็มประสิทธิภาพและให้เสียงรบกวนที่ต่ำ
  • TUF Protection : มาพร้อมกับ ASUS SafeSlot , ESD Guards ที่ช่วยป้องกันไฟกระชากและการจ่ายกระแสไฟฟ้าที่เกินกว่าความจำเป็น
  • Digi + VRM , I/O : ถูกออกแบบมาให้มีความทนทานและรองรับการใช้งานในระยะยาว
  • Military-grade TUF Components : TUF LANGuard, TUF Chokes, TUF Capacitors,และ TUF MOSFETs ใช้เทคโนโลยีทางการผลิตเทียบเท่ากับอุสหกรรมทางทหารที่ให้ความทนทานสูง
  • ASUS AURA SYNC : ปรับแต่งแสงไฟ RGB ให้สอดคล้องกับอุปกรณ์ที่รองรับโดยผ่านโปรแกรมที่ชื่อว่า ASUS AURA SYNC ที่จะช่วยซิงค์แสงไฟให้กับทุกๆอุปกรณ์ที่รองรับ
รายละเอียดสินค้า

  • Brand ASUS
  • Model TUF H310M-PLUS GAMING
  • CPU Support Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® 14 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0
  • * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  • Socket 1151 V2
  • Memory Support Intel® H310 Chipset
  • 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  • ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
  • Chipset Intel H310
  • Graphics Integrated Graphics Processor
  • Multi-VGA output support : HDMI/DVI-D ports
  • - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  • - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  • Maximum shared memory of 1024 MB (for iGPU exclusively)
  • Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  • Audio Realtek® ALC887 7.1-Channel High Definition Audio CODEC
  • Audio Feature :
  • - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  • - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  • - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • Expansion Slots Intel® H310 Chipset
  • 1 x PCIe 3.0/2.0 x16 (x16 mode)
  • 2 x PCIe 2.0 x1
  • Storage Intel® H310 Chipset :
  • 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)
  • 4 x SATA 6Gb/s port(s),
  • USB Intel® H310 Chipset :
  • 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
  • Intel® H310 Chipset :
  • 6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board)
  • Internal I/O Connectors 1 x Aura RGB Strip Header(s)
  • 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  • 1 x M.2 Socket 3
  • 1 x COM port(s) connector(s)
  • 4 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s) (1 x 4 -pin)
  • 1 x Chassis Fan connector(s) (1 x 4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x Speaker connector

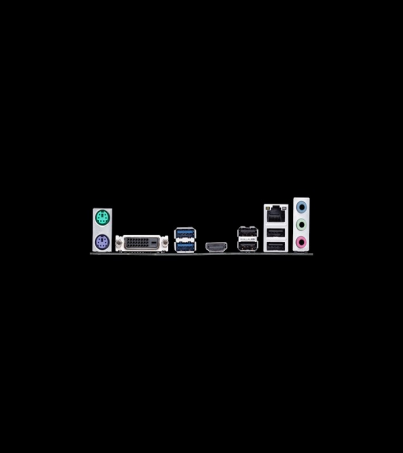

  • Back Panel Connectors 1 x PS/2 keyboard (purple)
  • 1 x PS/2 mouse (green)
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.1 Gen 1 (blue)
  • 4 x USB 2.0
  • 3 x Audio jack(s)
  • LAN Intel® I219V, 1 x Gigabit LAN Controller(s)
  • TUF LANGuard
  • Form Factor mATX Form Factor
  • 8.9 inch x 8.2 inch ( 22.6 cm x 20.8 cm )
  • BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF, F9 Search
  • Special Features ASUS TUF PROTECTION
  • - ASUS SafeSlot: Protect your graphics card Investment
  • - ASUS ESD Guard: Enhanced ESD protection
  • - ASUS Overvoltage Protection: World-class circuit-protecting power design
  • - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  • - ASUS DIGI+ VRM: 5 Phase digital power design
  • ASUS OptiMem:
  • - Optimem (Improved DDR4 stability)
  • ASUS EPU :
  • - EPU
  • ASUS Exclusive Features :
  • - AI Suite 3
  • - Ai Charger
  • - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  • - EZ XMP ASUS Exclusive Features
  • - PC Cleaner
  • - File Transfer
  • ASUS Quiet Thermal Solution :
  • - ASUS Fan Xpert
  • ASUS EZ DIY :
  • - ASUS EZ Flash 3
  • - ASUS MyLogo 2
  • - ASUS UEFI BIOS EZ Mode
  • ASUS Q-Design :
  • - ASUS Q-Slot
  • - ASUS Q-DIMM
  • Digi+VRM
  • AURA: RGB Lighting Control
  • M.2 Onboard(The latest transfer technologies with up to 20 Gb/s data transfer speeds)
  • Dimension (W x D x H) : 20.80 x 22.60 x 3.70 cm
  • Net Weight 0.41 KG
  • Package Dimension (W x D x H) : 26.90 x 26.20 x 5.20 cm
  • Gross Weight 0.80 KG
  • Volume 3,664.86 cm3
