0.0 (0)

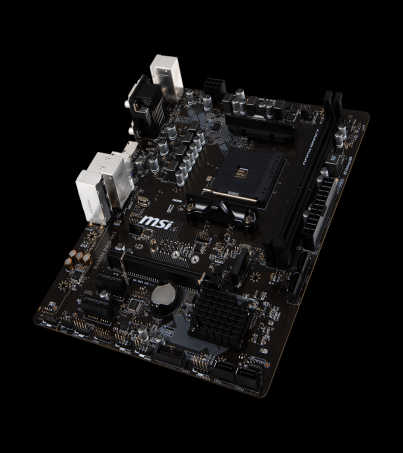

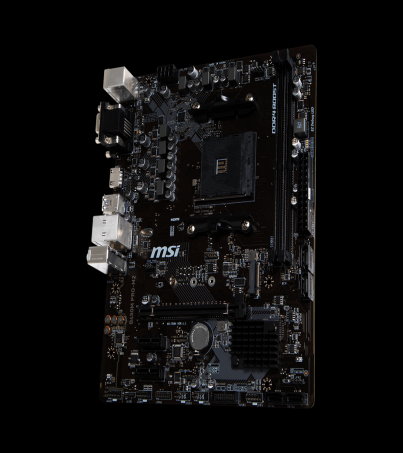

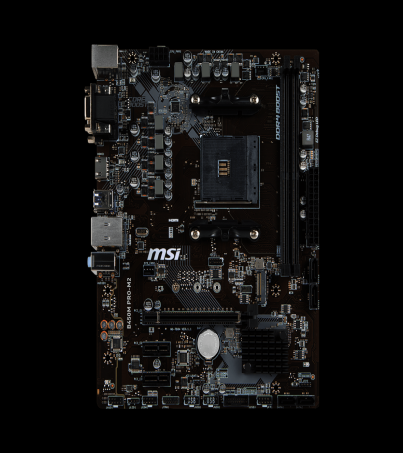

(AM4) MSI B450M PRO M.2

32%
3,190.00
฿ 2,190.00

ฟรี

ได้รับภายใน : 31 มี.ค. ~ 02 เม.ย., 2024

สามารถเก็บเงินปลายทางได้

การรับประกัน

การรับประกัน : มีการรับประกัน 3 ปี

คืนสินค้าภายใน 15 วัน

คุณสมบัติทั่วไป
คำอธิบายสินค้า
รายละเอียดสินค้า
คะแนนและรีวิว
Q & A
คุณสมบัติทั่วไป
สิ่งที่ให้มาในกล่อง MODEL
Chipset AMD B450 Form Factor Micro-ATX
Mainboard Brand MSI การรับประกัน รับประกันโดยร้านผู้จัดจำหน่าย
ระยะเวลาการรับประกัน 3 years
คำอธิบายสินค้า
  • by MSI

  • Supports AMD® RYZEN™ 1st and 2nd Generation / Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4
  • Supports DDR4-3466+(OC) Memory
  • Audio Boost: Reward your ears with studio grade sound quality.
  • DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost.
  • Turbo M.2: Delivering Speeds Up to 32Gb/s.
  • EZ Debug LED: Easiest way to troubleshoot.
  • PCI-E Steel Slot: Protecting VGA cards against bending.
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
รายละเอียดสินค้า
  • Brand MSI
  • Model B450M PRO-M2
  • CPU Support Support AMD® Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4
  • Socket AM4
  • Memory Support 2 x DDR4 memory slots, support up to 32GB
  • - Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC mode
  • Dual channel memory architecture
  • Supports ECC UDIMM memory (non-ECC mode)
  • Support non-ECC UDIMM memory
  • Chipset AMD B450
  • Graphics 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160@24Hz
  • Audio Realtek® ALC887 Codec
  • - 7.1-Channel High Definition Audio
  • Expansion Slots 1 x PCIe 3.0 x16 slot
  • - Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
  • - Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
  • 2 x PCIe 2.0 x1 slots
  • Storage 4 x SATA 6Gb/s ports
  • - Supports RAID 0, RAID1 and RAID 10
  • 1 x M.2 slot (Key M)
  • - Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
  • USB AMD® B450 Chipset
  • 2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector
  • 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

  • AMD® Processors
  • 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
  • Internal I/O Connectors 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Serial port connector
  • 1 x LED strip connector
  • 1 x Clear CMOS jumper

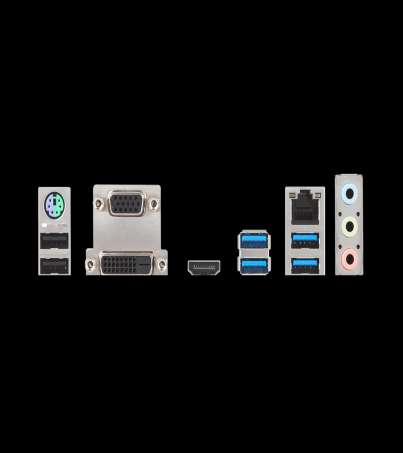

  • Back Panel Connectors 1 x PS/2 Port
  • 1 x VGA Port
  • 4 x USB 3.1 Gen1 Port
  • 1 x LAN Port
  • 3 x audio jacks
  • 2 x USB 2.0
  • 1 x DVI-D Port
  • 1 x HDMI
  • LAN 1 x Realtek® 8111H Gigabit LAN controller
  • Form Factor 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
  • M-ATX Form Factor
  • Operating System Support Support for Windows® 10 64-bit
  • Support for Windows® 7 64-bit
  • * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
คะแนนและรีวิว

0.0 / 5 ( 0 คะแนน )

ยังไม่มีรีวิว

Q & A

คุณมีคำถามเกี่ยวกับผลิตภัณฑ์นี้หรือไม่?

ผู้ขายจะตอบกลับโดยเร็วที่สุด
