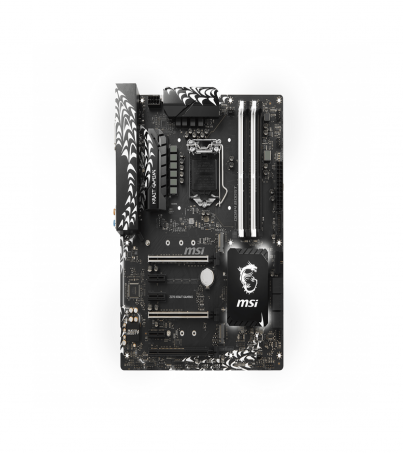

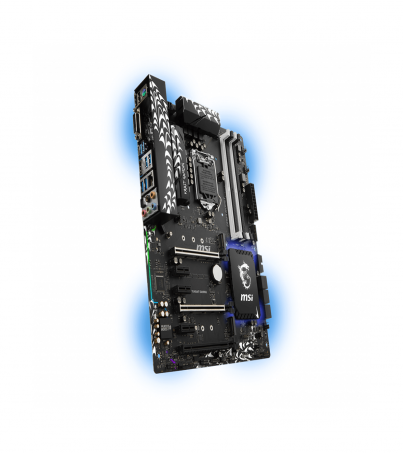

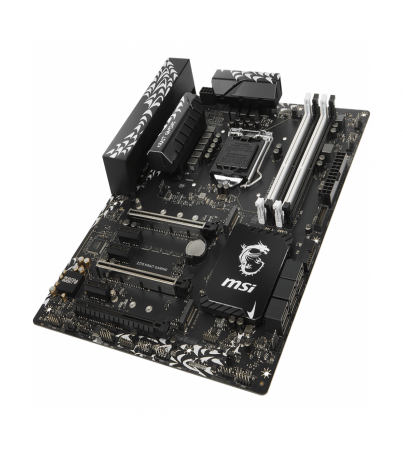

MSI Z370 KRAIT GAMING (1151V2)

Brand MSI

Model Z370 KRAIT GAMING

CPU Support Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors for Socket LGA1151

Socket 1151 V2

Memory Support 4 x DDR4 memory slots, support up to 64GB

- Supports DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Memory

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

* Please refer to www.msi.com for more information on compatible memory.

Chipset Intel Z370

Graphics 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz

1 x DV-D port, supports a maximum resolution of 1920x1200@60Hz

Multi Graphic Support Supports 2-Way NVIDIA® SLI™ Technology

Supports 3-Way AMD® CrossFire™ Technology

Audio Realtek® ALC1220 Codec

- 7.1-Channel High Definition Audio

- Supports S/PDIF output

Expansion Slots 3 x PCIe 3.0 x16 slots

3 x PCIe 3.0 x1 slots

Storage Intel® Z370 Chipset

6 x SATA 6Gb/s ports*

2 x M.2 slots (Key M)

- Support up to PCIe 3.0 x4 and SATA 6Gb/s

- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**

- M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices

- M2_2 slot supports 2242/ 2260 /2280 storage devices

- Intel® Optane™ Memory Ready for all M.2 slots***

* M.2 and SATA ports maximum support 1x M.2 PCIe SSD + 1x M.2 SATA SSD + 5x SATA HDDs. Please refer the manual for M.2 slots with examples of various combination possibilities.

** The Turbo U.2 Host Card is not included, please purchase separately.

*** Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB ASMedia® ASM3142 Chipset

- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel

- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

Intel® Z370 Chipset

- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water pump fan connector

4 x 4-pin system fan connectors

1 x Front panel audio connector

2 x Front panel connectors

1 x RGB LED connectors

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Serial port connector

1 x Clear CMOS jumper

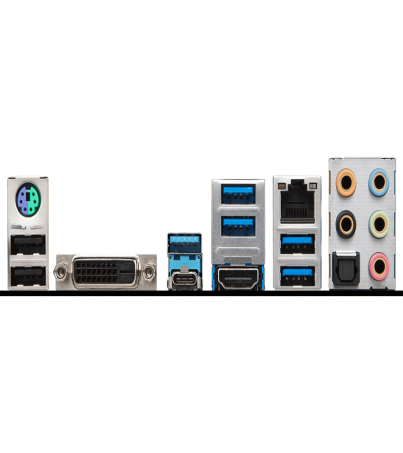

Back Panel Connectors 1 x PS/2 keyboard/ mouse combo port

2 x USB 2.0 ports

1 x DVI-D port

1 x USB 3.1 Gen2 Type-A port

1 x USB 3.1 Gen2 Type-C port

4 x USB 3.1 Gen1 Type-A ports

1 x HDMI™ port

1 x LAN (RJ45) port

5 x OFC audio jacks

1 x Optical S/PDIF OUT connector

LAN 1 x Intel I219-V Gigabit LAN controller

Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

ATX Form Factor
